前言

将SSM作为后端的的一个项目即将完工,在开发过程中踩了很多坑,与此同时也学习到了新知识,有了不小收获。在遇到麻烦和解决麻烦的路上,受到了很多分享教程博主的帮助。为了将帮助延续下去,我也将自己SSM环境配置的过程做了简单的纪录、分享。

系统软件版本

  • Windows 10 专业版 22H2
  • IntelliJ IDEA 2022.3.3
  • MySQL 8.0.32
  • Java 19.0.2
  • Spring 6.0.6
  • MyBatis 3.5.13
  • Tomcat 11.0.0

(软件系统版本不用完全一致,不同版本之间可能会出现一定程度的兼容性问题,可在有问题时在寻找对应版本的解决办法)

新建项目及项目配置

  1. 新建项目

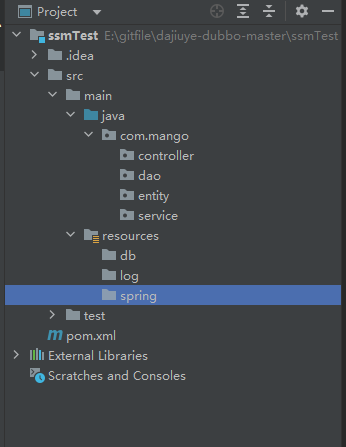

    使用IDEA新建一个空的默认Maven项目,并新建Java包完善SSM项目架构。

    在新建controller包(表现层)、dao包(持久层)、service包(业务层)

    在resources下新建db(存放数据库相关配置文件)、log(存放日志相关配置文件)、spring(存放与spring与其他整合相关配置文件)

    image-20230507141558542

  2. 修改Maven配置文件

    使用默认Maven配置文件,在下载包时会比较慢,我们可以修改配置文件使用国内镜像来加速下载

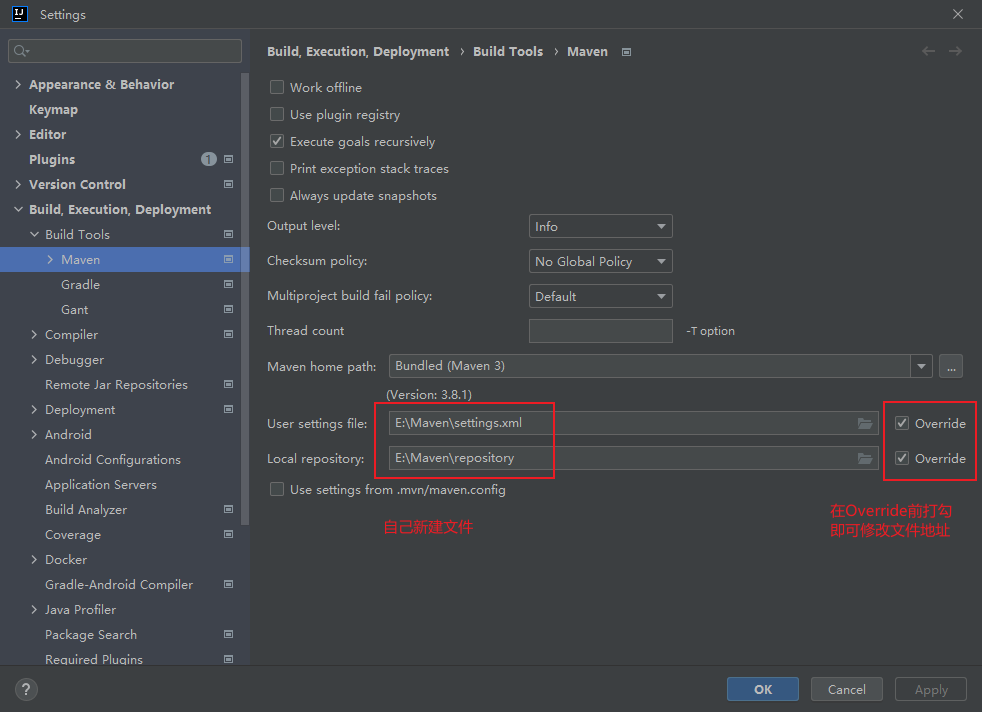

    IDEA内修改路径为File->Settings->Builde,Execution,Deployment->Maven

    可以修改默认的文件,也可以重新使用一个自定义的配置文件,笔者这里使用了重新新建一个配置文件的方法。

    image-20230507142114670

    其中settings.xml文件中内容如下:

    <?xml version="1.0" encoding="UTF-8"?>

    <!--
    Licensed to the Apache Software Foundation (ASF) under one
    or more contributor license agreements.  See the NOTICE file
    distributed with this work for additional information
    regarding copyright ownership.  The ASF licenses this file
    to you under the Apache License, Version 2.0 (the
    "License"); you may not use this file except in compliance
    with the License.  You may obtain a copy of the License at

        http://www.apache.org/licenses/LICENSE-2.0

    Unless required by applicable law or agreed to in writing,
    software distributed under the License is distributed on an
    "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY
    KIND, either express or implied.  See the License for the
    specific language governing permissions and limitations
    under the License.
    -->

    <!--
     | This is the configuration file for Maven. It can be specified at two levels:
     |
     |  1. User Level. This settings.xml file provides configuration for a single user,
     |                 and is normally provided in ${user.home}/.m2/settings.xml.
     |
     |                 NOTE: This location can be overridden with the CLI option:
     |
     |                 -s /path/to/user/settings.xml
     |
     |  2. Global Level. This settings.xml file provides configuration for all Maven
     |                 users on a machine (assuming they're all using the same Maven
     |                 installation). It's normally provided in
     |                 ${maven.conf}/settings.xml.
     |
     |                 NOTE: This location can be overridden with the CLI option:
     |
     |                 -gs /path/to/global/settings.xml
     |
     | The sections in this sample file are intended to give you a running start at
     | getting the most out of your Maven installation. Where appropriate, the default
     | values (values used when the setting is not specified) are provided.
     |
     |-->
    <settings xmlns="http://maven.apache.org/SETTINGS/1.2.0"
              xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
              xsi:schemaLocation="http://maven.apache.org/SETTINGS/1.2.0 http://maven.apache.org/xsd/settings-1.2.0.xsd">
      <!-- localRepository
       | The path to the local repository maven will use to store artifacts.
       |
       | Default: ${user.home}/.m2/repository
      <localRepository>/path/to/local/repo</localRepository>
      -->

      <!-- interactiveMode
       | This will determine whether maven prompts you when it needs input. If set to false,
       | maven will use a sensible default value, perhaps based on some other setting, for
       | the parameter in question.
       |
       | Default: true
      <interactiveMode>true</interactiveMode>
      -->

      <!-- offline
       | Determines whether maven should attempt to connect to the network when executing a build.
       | This will have an effect on artifact downloads, artifact deployment, and others.
       |
       | Default: false
      <offline>false</offline>
      -->

      <!-- pluginGroups
       | This is a list of additional group identifiers that will be searched when resolving plugins by their prefix, i.e.
       | when invoking a command line like "mvn prefix:goal". Maven will automatically add the group identifiers
       | "org.apache.maven.plugins" and "org.codehaus.mojo" if these are not already contained in the list.
       |-->
      <pluginGroups>
        <!-- pluginGroup
         | Specifies a further group identifier to use for plugin lookup.
        <pluginGroup>com.your.plugins</pluginGroup>
        -->
      </pluginGroups>

      <!-- proxies
       | This is a list of proxies which can be used on this machine to connect to the network.
       | Unless otherwise specified (by system property or command-line switch), the first proxy
       | specification in this list marked as active will be used.
       |-->
      <proxies>
        <!-- proxy
         | Specification for one proxy, to be used in connecting to the network.
         |
        <proxy>
          <id>optional</id>
          <active>true</active>
          <protocol>http</protocol>
          <username>proxyuser</username>
          <password>proxypass</password>
          <host>proxy.host.net</host>
          <port>80</port>
          <nonProxyHosts>local.net|some.host.com</nonProxyHosts>
        </proxy>
        -->
      </proxies>

      <!-- servers
       | This is a list of authentication profiles, keyed by the server-id used within the system.
       | Authentication profiles can be used whenever maven must make a connection to a remote server.
       |-->
      <servers>
        <!-- server
         | Specifies the authentication information to use when connecting to a particular server, identified by
         | a unique name within the system (referred to by the 'id' attribute below).
         |
         | NOTE: You should either specify username/password OR privateKey/passphrase, since these pairings are
         |       used together.
         |
        <server>
          <id>deploymentRepo</id>
          <username>repouser</username>
          <password>repopwd</password>
        </server>
        -->

        <!-- Another sample, using keys to authenticate.
        <server>
          <id>siteServer</id>
          <privateKey>/path/to/private/key</privateKey>
          <passphrase>optional; leave empty if not used.</passphrase>
        </server>
        -->
      </servers>

      <!-- mirrors
       | This is a list of mirrors to be used in downloading artifacts from remote repositories.
       |
       | It works like this: a POM may declare a repository to use in resolving certain artifacts.
       | However, this repository may have problems with heavy traffic at times, so people have mirrored
       | it to several places.
       |
       | That repository definition will have a unique id, so we can create a mirror reference for that
       | repository, to be used as an alternate download site. The mirror site will be the preferred
       | server for that repository.
       |-->
      <mirrors>
        <!-- mirror
         | Specifies a repository mirror site to use instead of a given repository. The repository that
         | this mirror serves has an ID that matches the mirrorOf element of this mirror. IDs are used
         | for inheritance and direct lookup purposes, and must be unique across the set of mirrors.
         |
        <mirror>
          <id>mirrorId</id>
          <mirrorOf>repositoryId</mirrorOf>
          <name>Human Readable Name for this Mirror.</name>
          <url>http://my.repository.com/repo/path</url>
        </mirror>
         -->
        <mirror>
          <id>aliment</id>
          <name>aliyah maven</name>
          <url>https://maven.aliyun.com/nexus/content/groups/public/</url>
          <mirrorOf>central</mirrorOf>
        </mirror>

        <mirror>
          <id>uk</id>
          <mirrorOf>central</mirrorOf>
          <name>Human Readable Name for this Mirror.</name>
          <url>https://uk.maven.org/maven2/</url>
        </mirror>

        <mirror>
          <id>CN</id>
          <name>OSChina Central</name>
          <url>https://maven.oschina.net/content/groups/public/</url>
          <mirrorOf>central</mirrorOf>
        </mirror>

        <mirror>
          <id>nexus</id>
          <name>internal nexus repository</name>
          <!-- <url>http://192.168.1.100:8081/nexus/content/groups/public/</url>-->
          <url>https://repo.maven.apache.org/maven2</url>
          <mirrorOf>central</mirrorOf>
        </mirror>
      </mirrors>

      <!-- profiles
       | This is a list of profiles which can be activated in a variety of ways, and which can modify
       | the build process. Profiles provided in the settings.xml are intended to provide local machine-
       | specific paths and repository locations which allow the build to work in the local environment.
       |
       | For example, if you have an integration testing plugin - like cactus - that needs to know where
       | your Tomcat instance is installed, you can provide a variable here such that the variable is
       | dereferenced during the build process to configure the cactus plugin.
       |
       | As noted above, profiles can be activated in a variety of ways. One way - the activeProfiles
       | section of this document (settings.xml) - will be discussed later. Another way essentially
       | relies on the detection of a system property, either matching a particular value for the property,
       | or merely testing its existence. Profiles can also be activated by JDK version prefix, where a
       | value of '1.4' might activate a profile when the build is executed on a JDK version of '1.4.2_07'.
       | Finally, the list of active profiles can be specified directly from the command line.
       |
       | NOTE: For profiles defined in the settings.xml, you are restricted to specifying only artifact
       |       repositories, plugin repositories, and free-form properties to be used as configuration
       |       variables for plugins in the POM.
       |
       |-->
      <profiles>
        <!-- profile
         | Specifies a set of introductions to the build process, to be activated using one or more of the
         | mechanisms described above. For inheritance purposes, and to activate profiles via <activatedProfiles/>
         | or the command line, profiles have to have an ID that is unique.
         |
         | An encouraged best practice for profile identification is to use a consistent naming convention
         | for profiles, such as 'env-dev', 'env-test', 'env-production', 'user-jdcasey', 'user-brett', etc.
         | This will make it more intuitive to understand what the set of introduced profiles is attempting
         | to accomplish, particularly when you only have a list of profile id's for debug.
         |
         | This profile example uses the JDK version to trigger activation, and provides a JDK-specific repo.
        <profile>
          <id>jdk-1.4</id>

          <activation>
            <jdk>1.4</jdk>
          </activation>

          <repositories>
            <repository>
              <id>jdk14</id>
              <name>Repository for JDK 1.4 builds</name>
              <url>http://www.myhost.com/maven/jdk14</url>
              <layout>default</layout>
              <snapshotPolicy>always</snapshotPolicy>
            </repository>
          </repositories>
        </profile>
        -->

        <!--
         | Here is another profile, activated by the system property 'target-env' with a value of 'dev',
         | which provides a specific path to the Tomcat instance. To use this, your plugin configuration
         | might hypothetically look like:
         |
         | ...
         | <plugin>
         |   <groupId>org.myco.myplugins</groupId>
         |   <artifactId>myplugin</artifactId>
         |
         |   <configuration>
         |     <tomcatLocation>${tomcatPath}</tomcatLocation>
         |   </configuration>
         | </plugin>
         | ...
         |
         | NOTE: If you just wanted to inject this configuration whenever someone set 'target-env' to
         |       anything, you could just leave off the <value/> inside the activation-property.
         |
        <profile>
          <id>env-dev</id>

          <activation>
            <property>
              <name>target-env</name>
              <value>dev</value>
            </property>
          </activation>

          <properties>
            <tomcatPath>/path/to/tomcat/instance</tomcatPath>
          </properties>
        </profile>
        -->
      </profiles>

      <!-- activeProfiles
       | List of profiles that are active for all builds.
       |
      <activeProfiles>
        <activeProfile>alwaysActiveProfile</activeProfile>
        <activeProfile>anotherAlwaysActiveProfile</activeProfile>
      </activeProfiles>
      -->
    </settings>


    只是修改了mirrors部分,使用了阿里云镜像加速国内下载速度。

  3. 设置项目所需包

    修改pom.xml文件,以下内容为本人使用成功的配置文件内容,仅作参考

    <?xml version="1.0" encoding="UTF-8"?>
    <project xmlns="http://maven.apache.org/POM/4.0.0"
             xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
             xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
        <modelVersion>4.0.0</modelVersion>

        <groupId>com.mango</groupId>
        <artifactId>ssmTest</artifactId>
        <version>1.0-SNAPSHOT</version>

        <properties>
    <!--        工程编译版本,一般与安装的JDK版本一致-->
            <maven.compiler.source>19</maven.compiler.source>
            <maven.compiler.target>19</maven.compiler.target>
            <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
            <!--统一的版本管理-->
            <spring.version>6.0.6</spring.version>
            <slf4j.version>2.0.5</slf4j.version>
            <mysql.version>8.0.32</mysql.version>
            <mybatis.version>3.5.13</mybatis.version>
        </properties>

        <dependencies>

            <!-- spring -->
            <dependency>
                <groupId>org.aspectj</groupId>
                <artifactId>aspectjweaver</artifactId>
                <version>1.9.19</version>
            </dependency>
            <dependency>
                <groupId>org.springframework</groupId>
                <artifactId>spring-aop</artifactId>
                <version>${spring.version}</version>
            </dependency>
            <dependency>
                <groupId>org.springframework</groupId>
                <artifactId>spring-context</artifactId>
                <version>${spring.version}</version>
            </dependency>
            <dependency>
                <groupId>org.springframework</groupId>
                <artifactId>spring-web</artifactId>
                <version>${spring.version}</version>
            </dependency>
            <dependency>
                <groupId>org.springframework</groupId>
                <artifactId>spring-webmvc</artifactId>
                <version>${spring.version}</version>
            </dependency>
            <dependency>
                <groupId>org.springframework</groupId>
                <artifactId>spring-test</artifactId>
                <version>${spring.version}</version>
            </dependency>
            <dependency>
                <groupId>org.springframework</groupId>
                <artifactId>spring-tx</artifactId>
                <version>${spring.version}</version>
            </dependency>
            <dependency>
                <groupId>org.springframework</groupId>
                <artifactId>spring-jdbc</artifactId>
                <version>${spring.version}</version>
            </dependency>

            <!--Junit-->
            <dependency>
                <groupId>junit</groupId>
                <artifactId>junit</artifactId>
                <version>4.13.2</version>
                <scope>compile</scope>
            </dependency>

            <!--数据库驱动-->
            <dependency>
                <groupId>mysql</groupId>
                <artifactId>mysql-connector-java</artifactId>
                <version>${mysql.version}</version>
            </dependency>

            <!-- 数据库连接池 -->
            <dependency>
                <groupId>c3p0</groupId>
                <artifactId>c3p0</artifactId>
                <version>0.9.1.2</version>
                <type>jar</type>
                <scope>compile</scope>
            </dependency>

            <!--Servlet - JSP -->
            <dependency>
                <groupId>javax.servlet</groupId>
                <artifactId>servlet-api</artifactId>
                <version>2.5</version>
                <scope>provided</scope>
            </dependency>
            <dependency>
                <groupId>javax.servlet.jsp</groupId>
                <artifactId>jsp-api</artifactId>
                <version>2.0</version>
                <scope>provided</scope>
            </dependency>
            <dependency>
                <groupId>jstl</groupId>
                <artifactId>jstl</artifactId>
                <version>1.2</version>
            </dependency>

            <!--        @Resource注解依赖包-->

            <dependency>
                <groupId>javax.annotation</groupId>
                <artifactId>javax.annotation-api</artifactId>
                <version>1.3.2</version>
            </dependency>
            <!--Mybatis-->
            <dependency>
                <groupId>org.mybatis</groupId>
                <artifactId>mybatis</artifactId>
                <version>${mybatis.version}</version>
            </dependency>
            <!-- Spring整合ORM -->
            <dependency>
                <groupId>org.springframework</groupId>
                <artifactId>spring-orm</artifactId>
                <version>6.0.6</version>
            </dependency>
            <!--        spring整合mybatis-->
            <dependency>
                <groupId>org.mybatis</groupId>
                <artifactId>mybatis-spring</artifactId>
                <version>3.0.1</version>
            </dependency>

            <!-- log  -->
            <dependency>
                <groupId>org.apache.logging.log4j</groupId>
                <artifactId>log4j</artifactId>
                <version>2.20.0</version>
                <type>pom</type>
            </dependency>
            <dependency>
                <groupId>org.slf4j</groupId>
                <artifactId>slf4j-api</artifactId>
                <version>${slf4j.version}</version>
            </dependency>
            <dependency>
                <groupId>org.slf4j</groupId>
                <artifactId>slf4j-log4j12</artifactId>
                <version>${slf4j.version}</version>
            </dependency>
            <!--加入对json转换-->
            <!-- JSON: jackson -->
            <dependency>
                <groupId>com.fasterxml.jackson.core</groupId>
                <artifactId>jackson-annotations</artifactId>
                <version>2.14.2</version>
            </dependency>
            <dependency>
                <groupId>com.fasterxml.jackson.core</groupId>
                <artifactId>jackson-core</artifactId>
                <version>2.14.2</version>
            </dependency>
            <dependency>
                <groupId>com.fasterxml.jackson.core</groupId>
                <artifactId>jackson-databind</artifactId>
                <version>2.14.2</version>
            </dependency>
            <dependency>
                <groupId>com.fasterxml.jackson.jr</groupId>
                <artifactId>jackson-jr-all</artifactId>
                <version>2.14.2</version>
            </dependency>
            <dependency>
                <groupId>com.alibaba</groupId>
                <artifactId>fastjson</artifactId>
                <version>2.0.25</version>
            </dependency>
            <dependency>
                <groupId>com.alibaba</groupId>
                <artifactId>druid</artifactId>
                <version>1.2.16</version>
            </dependency>
            <!--    http请求-->
            <dependency>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-starter-webflux</artifactId>
                <version>3.0.4</version>
            </dependency>
        </dependencies>

        <build>
            <resources>
                <resource>
                    <directory>src/main/java</directory>
                    <includes>
                        <include>**/*.properties</include>
                        <include>**/*.xml</include>
                    </includes>
                    <filtering>false</filtering>
                </resource>
                <resource>
                    <directory>src/main/resources</directory>
                </resource>
            </resources>
        </build>

    </project>
  4. 添加Web模块

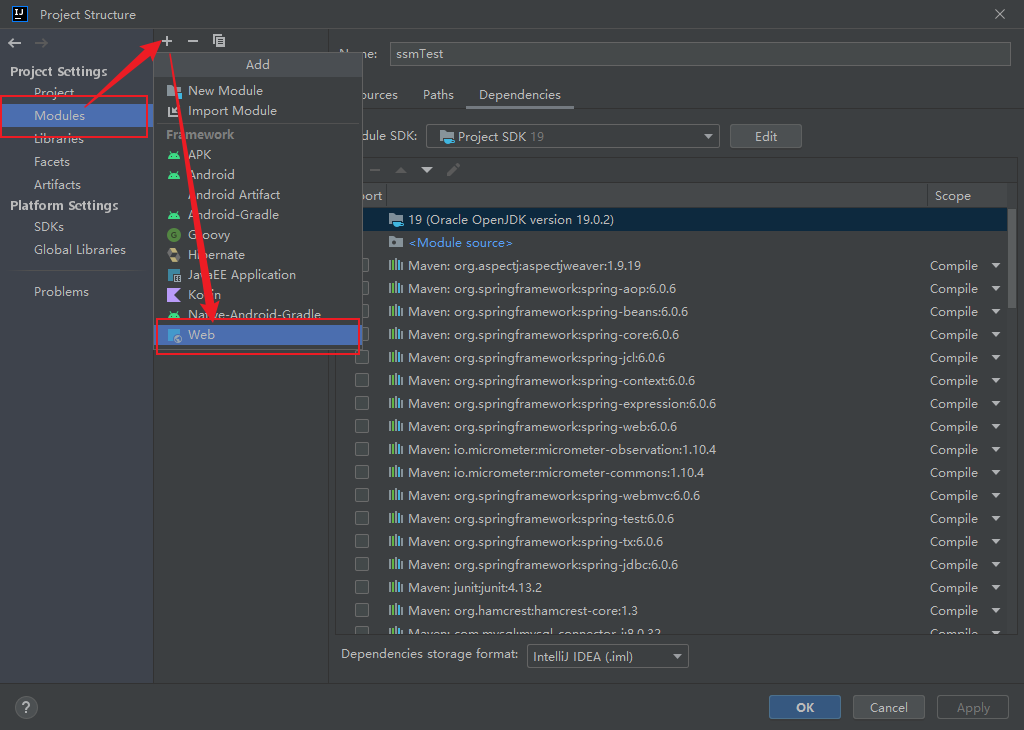

    File->Project Structure->Modules

    如图操作

    image-20230507143328815

    添加后内容保持默认,确认后即可导入web模块

  5. 安装Tomcat

    可以参考以下教程

SSM配置文件

  1. jdbc配置文件

    resources->db下新建jdbc.properties文件,其中内容参考如下

    jdbc.driver = com.mysql.cj.jdbc.Driver
    jdbc.url = jdbc:mysql://localhost:3306/xxx?useUnicode=true&characterEncoding=utf-8&useSSL=false&serverTimezone=GMT
    jdbc.username = root
    jdbc.password = root

    由于使用的MySQL版本为8,所以驱动才使用为com.mysql.cj.jdbc.Driver,由于没有在MySQL中做过测试,不能确定在MySQL 5中也能正常使用

    jdbc.url中的xxx用自己数据库名称替换

  2. 新建mybatis控制文件

    在db下新建mybatis.xml文件

    由于大部分和MyBatis相关配置文件都会和Spring的配置文件整合到一起,这里的Mybatis控制文件只起到辅助作用,参考代码如下:

    <?xml version="1.0" encoding="UTF-8"?>

    <!DOCTYPE configuration PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
            "http://mybatis.org/dtd/mybatis-3-config.dtd">

    <configuration>
        <!-- 开启延迟加载 该项默认为false,即所有关联属性都会在初始化时加载
            true表示延迟按需加载 -->
        <settings>
            <setting name="lazyLoadingEnabled" value="true"/>
            <!-- 开启二级缓存 -->
            <setting name="cacheEnabled" value="true"/>
        </settings>
    </configuration>

  3. Spring整合MyBatis

    resources->spring下新建applicationContext.xml文件,将Spring和MyBatis配置文件整合在一起,参考代码如下:

    <?xml version="1.0" encoding="UTF-8"?>
    <beans xmlns="http://www.springframework.org/schema/beans"
           xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
           xmlns:context="http://www.springframework.org/schema/context"
           xmlns:aop="http://www.springframework.org/schema/aop" xmlns:tx="http://www.springframework.org/schema/tx"
           xsi:schemaLocation="http://www.springframework.org/schema/beans
           http://www.springframework.org/schema/beans/spring-beans.xsd
           http://www.springframework.org/schema/context
           http://www.springframework.org/schema/context/spring-context.xsd
           http://www.springframework.org/schema/aop
           http://www.springframework.org/schema/aop/spring-aop.xsd
           http://www.springframework.org/schema/tx
           http://www.springframework.org/schema/tx/spring-tx.xsd">

        <!-- 开启注解扫描,要扫描的是service和dao层的注解,要忽略web层注解,因为web层让SpringMVC框架去管理 -->
        <context:component-scan base-package="com.mango">
            <!-- 配置要忽略的注解 -->
            <context:exclude-filter type="annotation" expression="org.springframework.stereotype.Controller"/>
        </context:component-scan>
        <!-- 引入配置文件 -->
        <bean id="propertyConfigurer"
              class="org.springframework.beans.factory.config.PropertyPlaceholderConfigurer">
            <property name="location" value="classpath:db/jdbc.properties" />
        </bean>

        <!--Spring整合Mybatisl框架-->
        <!-- 配置C3P0的连接池对象 -->
        <bean id="dataSource" class="org.springframework.jdbc.datasource.DriverManagerDataSource">
            <property name="driverClassName" value="${jdbc.driver}"/>
            <property name="url" value="${jdbc.url}"/>
            <property name="username" value="${jdbc.username}"/>
            <property name="password" value="${jdbc.password}"/>
        </bean>

        <!-- 配置SessionFactory的Bean -->
        <bean id="sessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">

            <!-- 注入数据源 -->
            <property name="dataSource" ref="dataSource"/>

            <!-- 指定MyBatis配置文件的位置 -->
            <property name="configLocation" value="classpath:db/mybatis.xml"/>

            <!-- 给实体类起别名 -->
            <property name="typeAliasesPackage" value="com.mango.entity"/>

        </bean>

        <!-- 配置mapper接口的扫描器,将Mapper接口的实现类自动注入到IoC容器中
        实现类Bean的名称默认为接口类名的首字母小写 -->
        <bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">

            <!-- basePackage属性指定自动扫描mapper接口所在的包 -->
            <property name="basePackage" value="com.mango.dao"/>

        </bean>

        <!--SqlMapConfig.xml和jdbcConfig.properties可以删除了-->

        <!--配置Spring框架声明式事务管理-->
        <!--配置事务管理器-->
        <bean id="transactionManager" class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
            <property name="dataSource" ref="dataSource"></property>
        </bean>
        <!-- 配置事务的通知 -->
        <tx:advice id="txAdvice" transaction-manager="transactionManager">
            <tx:attributes>
                <tx:method name="find*" propagation="SUPPORTS" read-only="true"/>
                <tx:method name="*" isolation="DEFAULT"/>
            </tx:attributes>
        </tx:advice>
        <!-- 配置AOP增强 -->
        <aop:config>
    <!--        <aop:advisor advice-ref="txAdvice" pointcut="execution(* com.mango.service.impl.*.*(..))"/>-->
            <!-- 配置切入点表达式 -->
            <aop:pointcut expression="execution(* com.mango.service.impl.*.*(..))" id="pt1"/>
            <!-- 建立通知和切入点表达式的关系 -->
            <aop:advisor advice-ref="txAdvice" pointcut-ref="pt1"/>
        </aop:config>
    </beans>

  4. Springmvc配置文件

    resources->spring下新建springmvc.xml文件

    <?xml version="1.0" encoding="UTF-8"?>
    <beans xmlns="http://www.springframework.org/schema/beans"
           xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
           xmlns:context="http://www.springframework.org/schema/context"
           xmlns:mvc="http://www.springframework.org/schema/mvc"
           xsi:schemaLocation="http://www.springframework.org/schema/beans
           http://www.springframework.org/schema/beans/spring-beans-4.0.xsd
           http://www.springframework.org/schema/mvc http://www.springframework.org/schema/mvc/spring-mvc-4.0.xsd
           http://www.springframework.org/schema/context
           http://www.springframework.org/schema/context/spring-context-4.0.xsd">

        <!-- 配置@controller扫描包 -->
        <context:component-scan base-package="com.mango.controller" />

        <!--使用Annotation自动注册Bean,扫描@Controller和@ControllerAdvice-->
        <context:component-scan base-package="com.mango" use-default-filters="false">
            <!-- base-package 如果多个,用“,”分隔 -->
            <context:include-filter type="annotation" expression="org.springframework.stereotype.Controller" />
            <!--控制器增强,使一个Controller成为全局的异常处理类,类中用@ExceptionHandler方法注解的方法可以处理所有Controller发生的异常-->
            <context:include-filter type="annotation" expression="org.springframework.web.bind.annotation.ControllerAdvice" />
        </context:component-scan>
        <!-- 配置注解驱动,相当于同时使用最新处理器映射跟处理器适配器,对json数据响应提供支持 -->
        <mvc:annotation-driven />


        <!-- 输出对象转JSON支持 -->
        <bean class="org.springframework.web.servlet.mvc.method.annotation.RequestMappingHandlerAdapter">
            <property name="messageConverters">
                <list>
                    <bean class="org.springframework.http.converter.json.MappingJackson2HttpMessageConverter">
                        <property name="supportedMediaTypes">
                            <list>
                                <value>text/html;charset=UTF-8</value>
                                <value>text/plain;charset=UTF-8</value>
                                <value>application/json;charset=UTF-8</value>
                            </list>
                        </property>
                    </bean>
                </list>
            </property>
        </bean>

        <!-- 配置视图解析器 -->
        <bean class="org.springframework.web.servlet.view.InternalResourceViewResolver">
            <property name="prefix" value="/WEB-INF/jsp/"/>
            <property name="suffix" value=".jsp"/>
        </bean>
    </beans>

  5. web模块控制文件

    编辑web->WEB-INF->web.xml文件,内容如下

    <web-app xmlns="http://xmlns.jcp.org/xml/ns/javaee"
             xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
             xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee
             http://xmlns.jcp.org/xml/ns/javaee/web-app_3_1.xsd"
             version="3.1">
        <!-- 配置前端控制器 -->
        <servlet>
            <servlet-name>springmvc</servlet-name>
            <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>

            <!-- 指定配置文件位置和名称 如果不设置,默认找/WEB-INF/<servlet-name>-servlet.xml -->
            <init-param>
                <param-name>contextConfigLocation</param-name>
                <param-value>classpath:spring/springmvc.xml</param-value>
            </init-param>
            <load-on-startup>1</load-on-startup>
            <async-supported>true</async-supported>
        </servlet>

        <servlet-mapping>
            <servlet-name>springmvc</servlet-name>
            <url-pattern>/</url-pattern>
        </servlet-mapping>


        <!-- 配置 spring 提供的监听器,用于启动服务时加载容器 。
         该监听器只能加载 WEB-INF 目录中名称为 applicationContext.xml 的配置文件 -->
        <listener>
            <listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
        </listener>
        <!-- 手动指定 spring 配置文件位置 -->
        <context-param>
            <param-name>contextConfigLocation</param-name>
            <param-value>classpath:spring/applicationContext.xml</param-value>
        </context-param>

    </web-app>

  6. 日志配置

    resources->log下新建log4j.properties

    log4j.rootLogger=DEBUG, stdout
    log4j.appender.stdout=org.apache.log4j.ConsoleAppender
    log4j.appender.stdout.layout=org.apache.log4j.PatternLayout
    log4j.appender.stdout.layout.ConversionPattern=%5p %d %C: %m%n

    log4j.logger.java.sql.ResultSet=INFO
    log4j.logger.org.apache=INFO
    log4j.logger.java.sql.Connection=DEBUG
    log4j.logger.java.sql.Statement=DEBUG
    log4j.logger.java.sql.PreparedStatement=DEBUG

测试

test->java下更具需求新建测试类

新建测试数据库test,其中有表student(id,name,age)

在之前新建的entity包中新建Student的实现类(getter、setter方法以省略)

package com.mango.entity;

public class Student {
    private int id;
    private String name;
    private String age;

    @Override
    public String toString() {
        return "Student{" +
                "id=" + id +
                ", name='" + name + '\'' +
                ", age='" + age + '\'' +
                '}';
    }
}
  1. 对Spring和MyBatis整合配置测试

    在包dao中新建学生接口StudentDao.java

    package com.mango.dao;

    import com.mango.entity.Student;

    import java.util.List;

    public interface StudentDao {
        public List<Student> findAll();
    }

    在同样位置新建同名mapper文件StudentDao.xml

    <?xml version="1.0" encoding="UTF-8" ?>
    <!DOCTYPE mapper
            PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
            "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
    <!--命名空间为StudentDao接口-->
    <mapper namespace="com.mango.dao.StudentDao">
    <!--    id为接口中的方法名-->
    <select id="findAll">SELECT * FROM Student</select>
    </mapper>

    在service包中新建service接口和实现类

    image-20230507154913975

    学生业务层接口StudentService.java

    package com.mango.service;

    import com.mango.entity.Student;
    import org.springframework.stereotype.Service;

    import java.util.List;

    //千万不要忘记添加Service注解
    @Service
    public interface StudentService {
        public List<Student> findAll();
    }

    实现类StudentServiceImpl.java

    package com.mango.service.impl;

    import com.mango.dao.StudentDao;
    import com.mango.entity.Student;
    import com.mango.service.StudentService;
    import org.springframework.beans.factory.annotation.Autowired;
    import org.springframework.stereotype.Service;

    import java.util.List;

    @Service
    public class StudentServiceImpl implements StudentService {
        @Autowired
        private StudentDao studentDao;
        public List<Student> findAll(){
            return studentDao.findAll();
        }

    }

    在test中新建Spring和MyBatis整合测试代码SpringMyBatis.java

    import com.mango.entity.Student;
    import com.mango.service.StudentService;
    import org.junit.Test;
    import org.junit.runner.RunWith;
    import org.springframework.beans.factory.annotation.Autowired;
    import org.springframework.test.context.ContextConfiguration;
    import org.springframework.test.context.junit4.SpringJUnit4ClassRunner;

    import java.util.List;

    @RunWith(SpringJUnit4ClassRunner.class)
    @ContextConfiguration(locations="classpath:spring/applicationContext.xml")
    public class SpringMyBatis {
        @Autowired
        private StudentService studentService;
        @Test
        public void test(){
            List<Student> studentList=studentService.findAll();
            for (Student student:studentList){
                System.out.println(student.toString());
            }
        }
    }

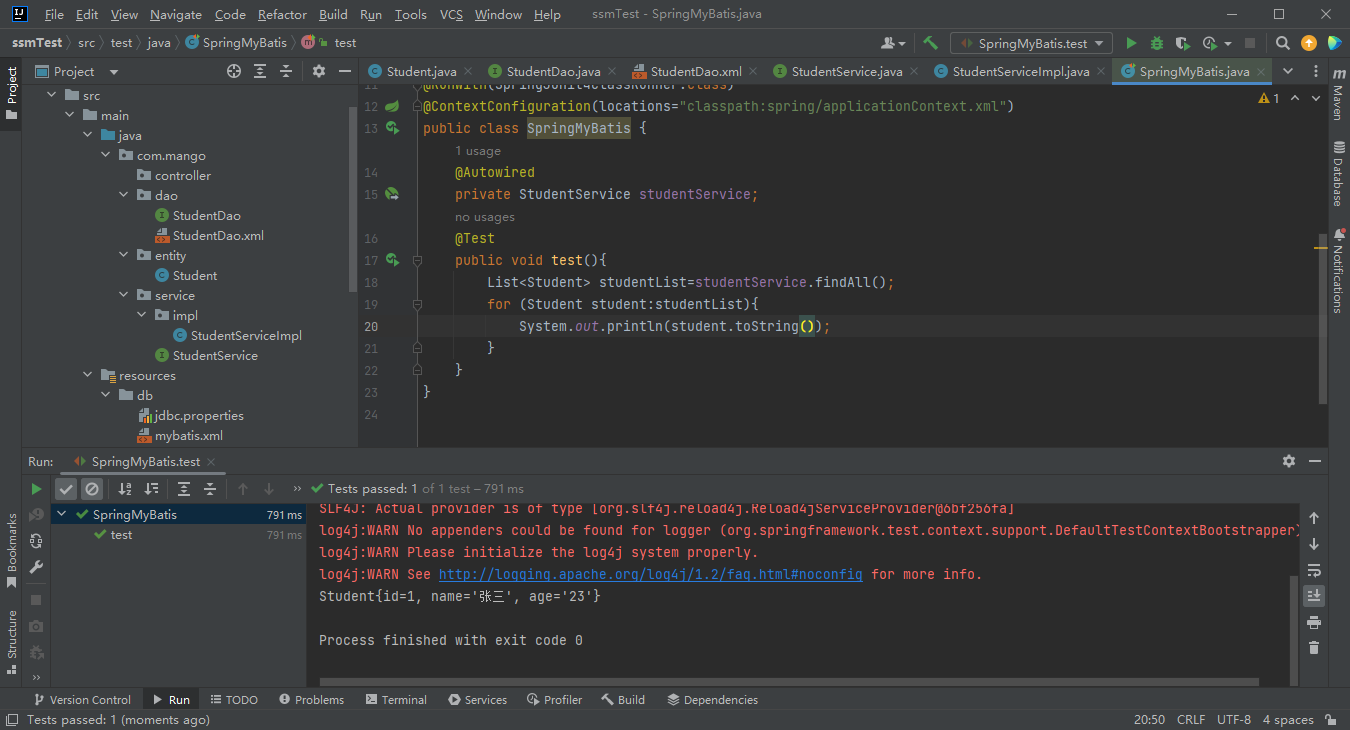

    image-20230507161529932

    测试成功

  2. Spring整合SpringMVC测试

    在Controller包中新建StudentController.java

    package com.mango.controller;

    import com.mango.service.StudentService;
    import org.springframework.beans.factory.annotation.Autowired;
    import org.springframework.stereotype.Controller;
    import org.springframework.web.bind.annotation.RequestMapping;
    import org.springframework.web.bind.annotation.RequestMethod;
    import org.springframework.web.bind.annotation.ResponseBody;

    //千万不要忘记@Controller
    @Controller
    @RequestMapping
    public class StudentController {
        @Autowired
        private StudentService studentService;

        @RequestMapping(value = "/test" ,method = RequestMethod.GET)
        @ResponseBody
        public Object test(){
            return studentService.findAll();
        }
    }

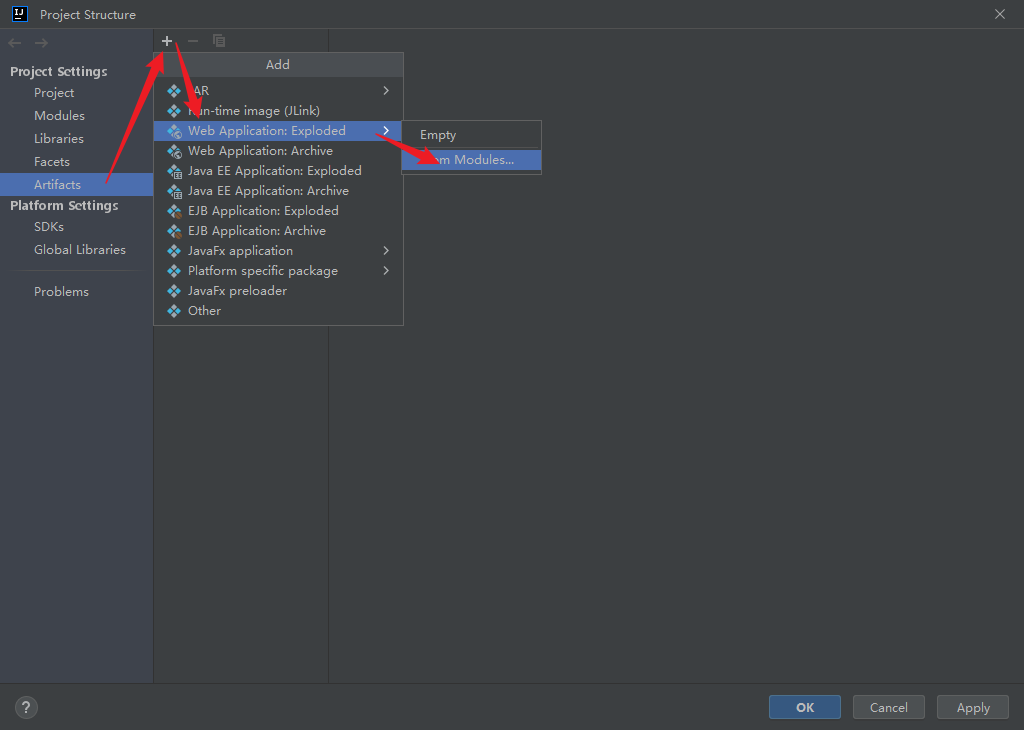

    将项目打包File->Project Structure->Artifacts

    image-20230507162236159

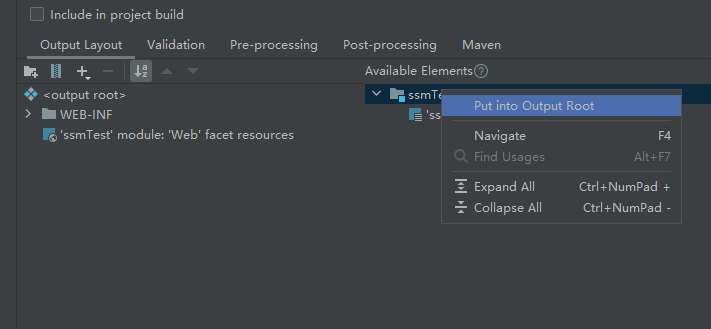

    如果有出现部分包不完全可以下图操作

    image-20230507162342826

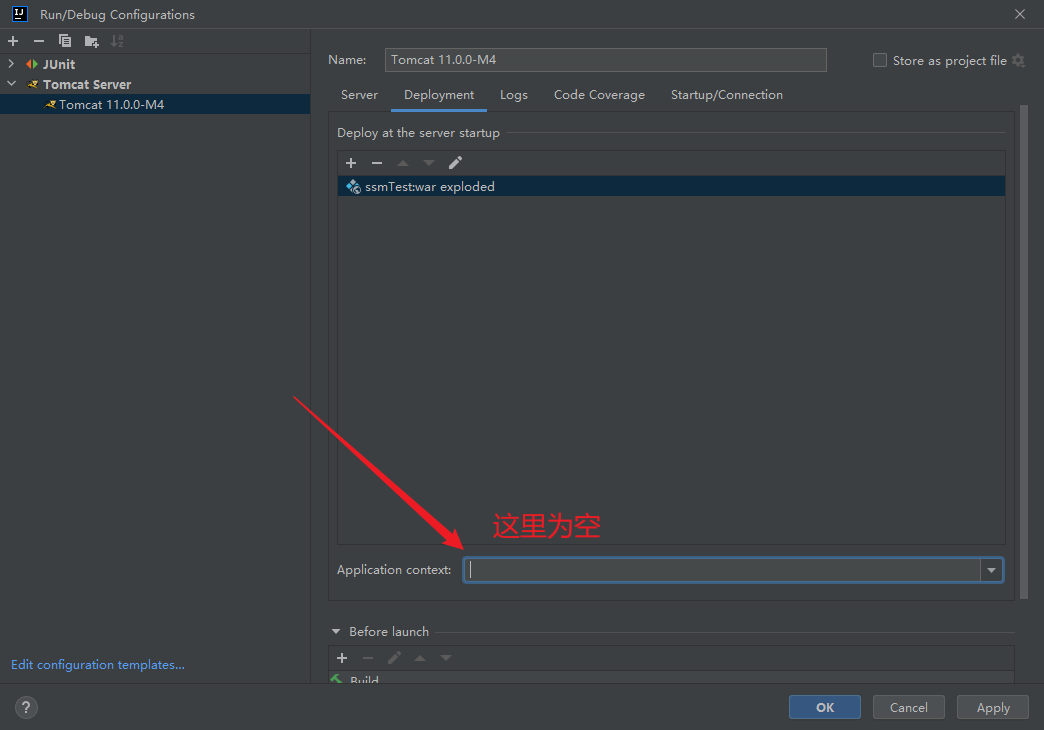

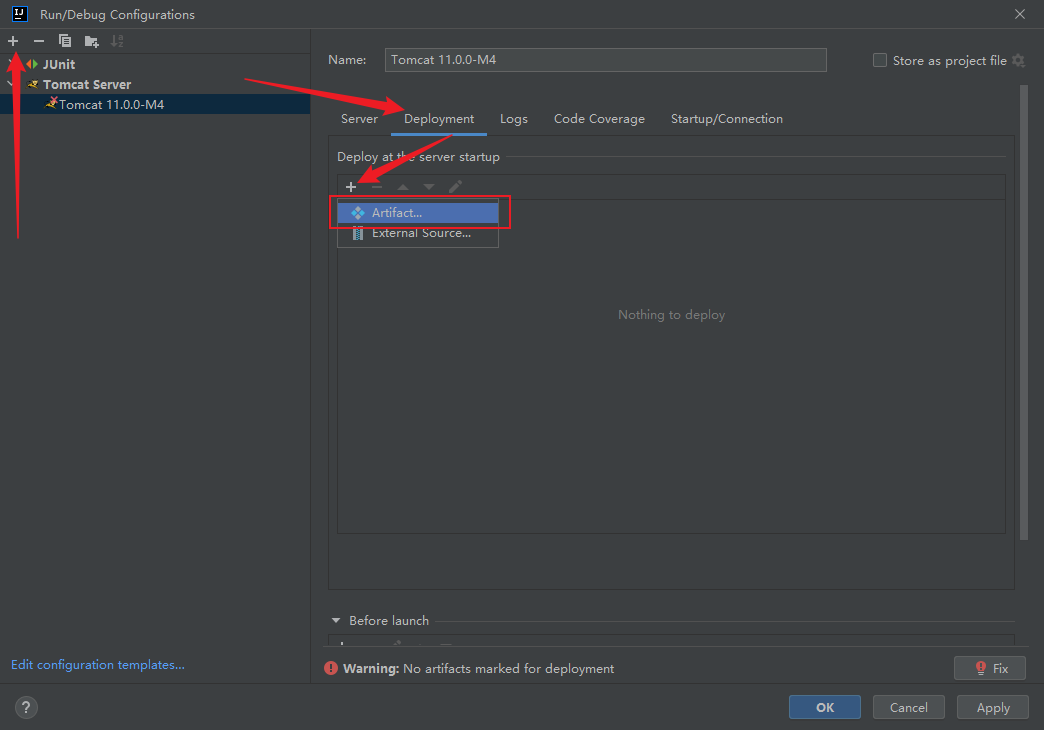

    修改Tomcat配置(已正确安装Tomcat的情况下)

    image-20230507162648849

    image-20230507162740440

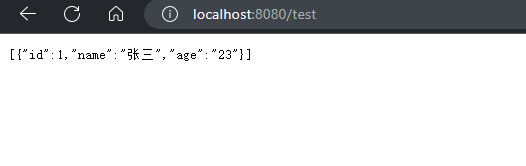

    启动Tomcat后在浏览器中访问localhost:8080/test 不报错有返回值,说明Spring整合SpringMVC配置成功。

    image-20230507163245993

最后修改:2024 年 05 月 12 日
如果觉得我的文章对你有用,请随意赞赏
